Track Across Texas

Click on the image to greatly expand its view.

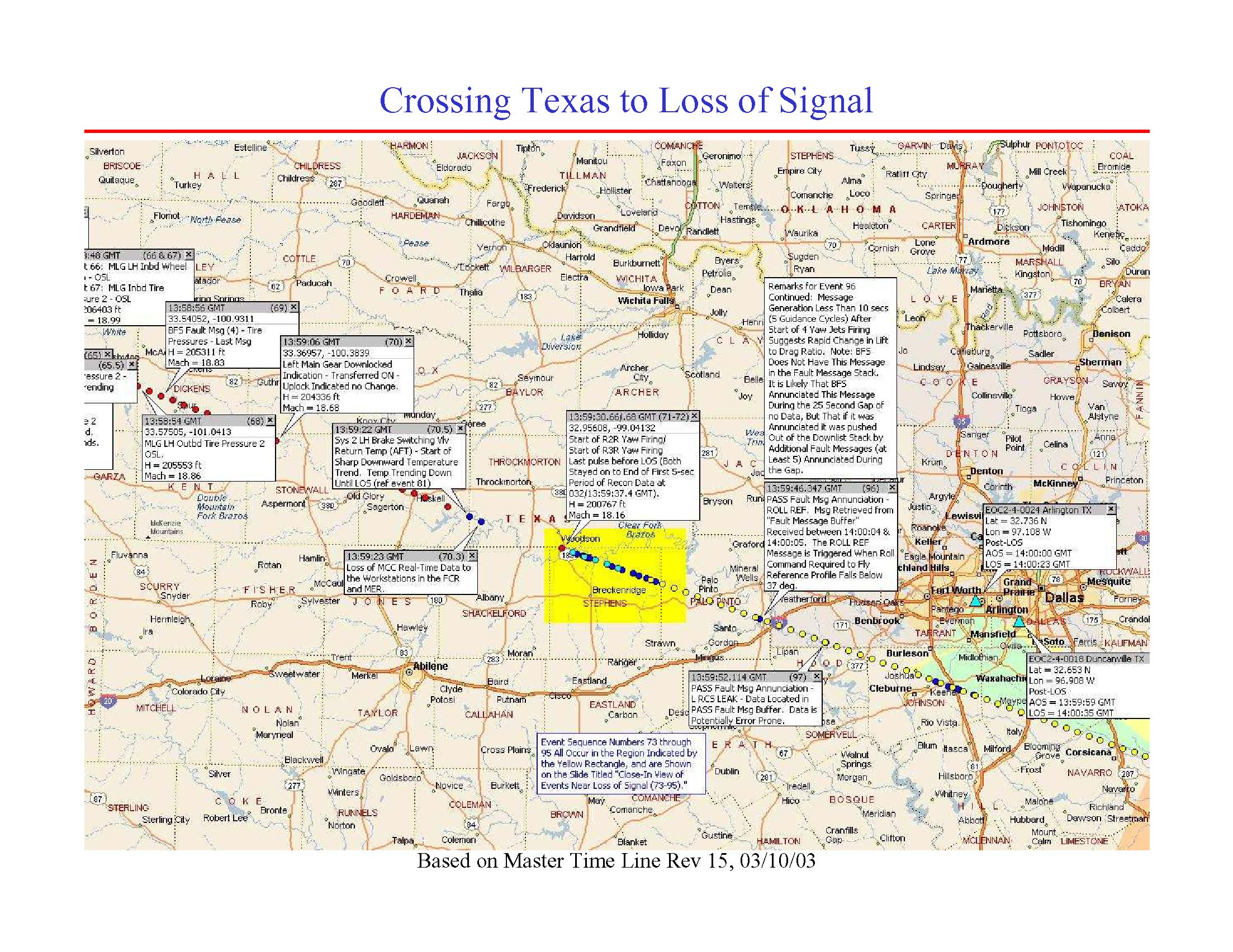

This NASA graphic correlates the shuttle's positions (as it crossed Texas) with various anomalies and fault messages.  It ends at the loss of signal, when Columbia was over the Arlington area.

Credits

Graphic, Columbia Accident Investigation Report.
